LiFePO4 (LFP)

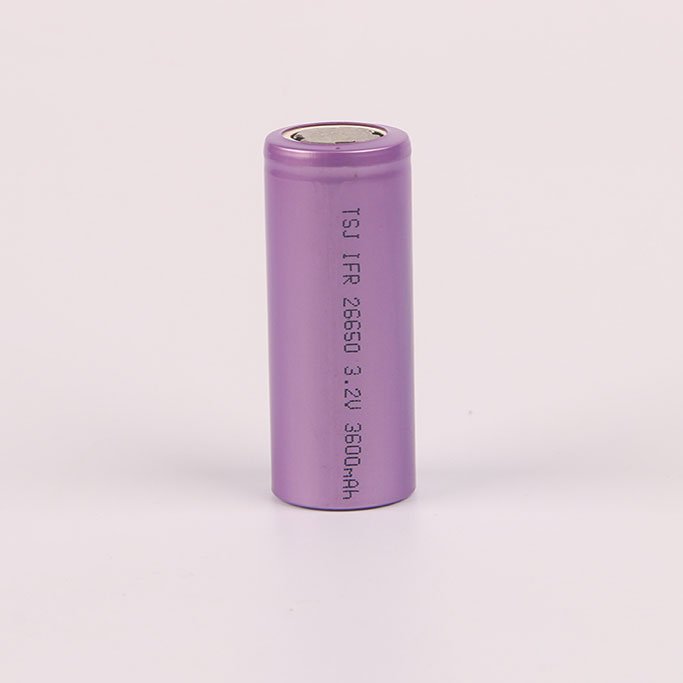

LFP26650-3600mAh
lifepo4-26650-3600mah-battery-cell
3.2V nominal voltage with 3600mAh rated capacity.
LiFePO4 chemistry in 26650 format for rechargeable battery assemblies.
Available for OEM pack integration, application matching and engineering review.
Request Engineering Review
Product Data
Key Specifications
Core parameters for fast product comparison and initial selection.
Chemistry
LiFePO4 (LFP)
Size
26650
Nominal Voltage
3.2V V
Typical Capacity
3600mAh mAh
Minimum Capacity
3550 mAh
Dimensions
D= 26.7-0.7mm H:66.2±0.5mm
Weight
86
Use Cases
Typical Applications
Common application categories associated with this product.
Application Fit
Tell us your voltage, capacity, quantity and operating requirements for an engineering recommendation.
Emergency LightingIndustrial Backup / UPSMedical
Electrical Performance
Performance
Verified performance values are displayed only when available.
Internal Resistance
≤25mΩ
Max Continuous Discharge
10.8A
Peak Discharge
10.8A
Cycle Life
≥ 2000 Cycles
Operating Temperature
-20°C to +60°C
Safety & Compliance
Safety & Compliance
Documentation-ready information for product review and market requirements.
Compliance Snapshot
Certifications
ISO9001ISO14001ISO45001REACH
Safety / Protection Summary
Integration
Mechanical Integration
Dimensions and integration details for enclosure, connection and installation planning.
Dimensions
D= 26.7-0.7mm H:66.2±0.5mm
Weight
86
IP Rating
N/A
Flexible Supply
Customization Options
Available OEM/ODM options and commercial parameters for project sourcing.
Discuss Custom Battery RequirementsOEM / ODM SupportedConfiguration and supply requirements can be reviewed with our engineering team.
Engineering Support
Get an Engineering Review
Send your voltage, capacity, discharge profile, quantity and application requirements.
Start Your RFQ
Our team will review product fit and customization feasibility.
Send Requirements for Review
